In stock

Product code

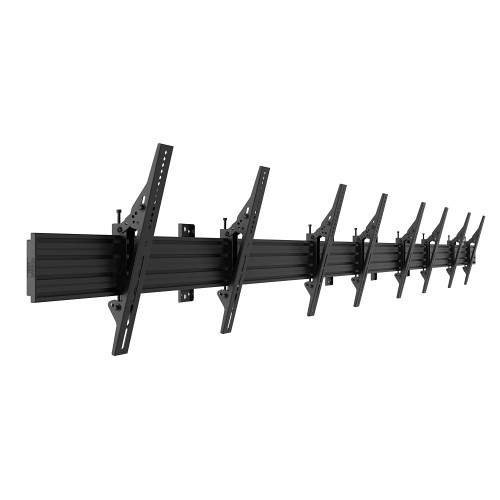

4x1 wall menu board mount (156.7" rail), tilting angle. Max load per display: 110lb

The ADBS-4X1-39TW is a pre-configured mounting solution for digital menu boards. The mounting brackets support displays up to 110lb and are attached to a 156.7" horizontal mounting rail, with the added convenience of tilting mechanism.

  • Max weight per screen: 110lb
  • Landscape orientation
  • Universal VESA: up to 400mm
  • Horizontal mounting rail: 156.7"
  • Material: Aluminum/Steel
  • Colour: Silver rail/Black VESA brackets
  • Warranty: 10 years


The ADBS-4X1-39TW solution is part of the Atdec Digital Signage modular family and consists of the following individual components:

2 x ADB-R175-S 68.9” mounting rail

1 x ADB-R48-S 18.9” mounting rail

2 x ADB-RX rail extension kit

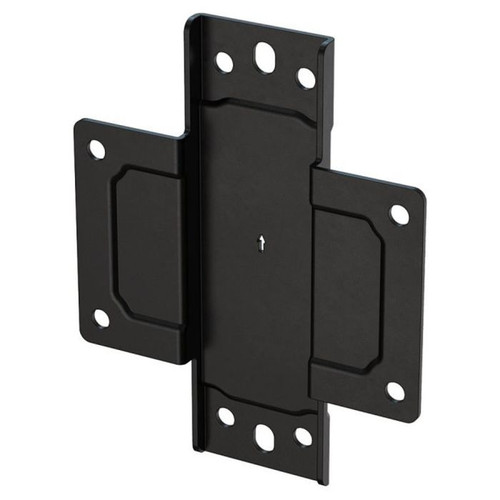

5 x ADB-WP rail to wall attachment plate

4 x ADB-B400T VESA 400 tilting brackets (set of two)

Atdec modular menu board solutions can be configured to support any number of screens in landscape or portrait orientation. They are ideal for quick-service restaurants and other environments where displays have to be prominently positioned for critical information delivery. Lightweight yet durable aluminum rails can be connected together or cut to length to suit specific project requirements.

ADBS-4X1-39TW is part of the Atdec modular digital signage family. Learn more about infinite mounting possibilities for digital signage

Customize ADBS-4X1-39TW
ADB-R175-S   + $310.00
ADB-R48-S   + $82.00
ADB-RX   + $44.00
ADB-WP   + $56.00
ADB-B400T   + $138.00

* Required Fields


In stock


You will receive the following components:
    VESA compatibility
    Video Instruction
    Product Details
    Product code ADBS-4X1-39TW
    Material Aluminum/Steel
    Warranty 10 years
    Flat screen: maximum supported weight, lb 110.000000
    VESA mounting hole pattern 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400, 800x200
    Range of movement
    Range of motion Fixed angle, Full motion, Tilt
    Tilt adjustment -
    Pan adjustment -
    Horizontal leveling adjustment -
    Minimum distance from wall (inches) -
    Security features -
    1. Installation Guide pdf(0.7MB)
